Bylaw 14407
Amendment No. 731
WHEREAS a portion of Lot 14A, Block 1, Plan 762 0049, located south of 109 Avenue NW between 170 Street NW and Mayfield Road NW, Youngstown Industrial, Edmonton, Alberta, is specified on the Zoning Map as (IM) Medium Industrial Zone; and
WHEREAS an application was made to rezone the above described property to (DC2) Site Specific Development Control Provision;
NOW THEREFORE after due compliance with the relevant provisions of the Municipal Government Act RSA 2000, ch. M-26, as amended, the Municipal Council of the City of Edmonton duly assembled enacts as follows:
1. The Zoning Map, being Part III to Bylaw 12800 The Edmonton Zoning Bylaw is hereby amended by rezoning the lands legally described as a portion of Lot 14A, Block 1, Plan 762 0049, located south of 109 Avenue NW between 170 Street NW and Mayfield Road NW, Youngstown Industrial, Edmonton, Alberta, which lands are shown on the sketch plan annexed hereto as Schedule ”A”, from (IM) Medium Industrial Zone to (DC2) Site Specific Development Control Provision.
2. The uses and regulations of the aforementioned DC2 Provision are annexed hereto as Schedule "B".
3. The sketch plan annexed hereto as Schedule "A" and the uses and regulations of the DC2 Provision shown on Schedule "B" annexed hereto are hereby incorporated into the Zoning Bylaw, being Part IV to Bylaw 12800, The Edmonton Zoning Bylaw.
SCHEDULE "A"
SCHEDULE ”B”
(DC2) SITE SPECIFIC DEVELOPMENT CONTROL PROVISION
1. General Purpose
To provide for the development of a medium rise office building with a limited range of complementary business support and commercial uses.
2. Area of Application
This Provision shall apply to a portion of Lot 14A, Block 1, Plan 762 0049, containing approximately 1. 87 ha, located south of 109 Avenue between Mayfield Road and 170 Street, Youngstown Industrial, as shown on Schedule ”A” of the Bylaw adopting this DC2 Provision.
3. Uses
a. Business Support Services
b. Convenience Retail Stores
c. Government Services
d. Health Services
e. Non-accessory Parking
f. Personal Service Shops
g. Professional, Financial and Office Support Services
h. Restaurants, for less than 200 occupants and 240 m2 of Public Space
i. Specialty Food Services, for less than 100 occupants and 120 m2 of Public Space
j. Fascia On-premises Signs
k. Freestanding On-premises Signs
l. Projecting On-premises Signs
m. Roof On-premises Signs
n. Temporary On-premises Signs
4. Development Regulations

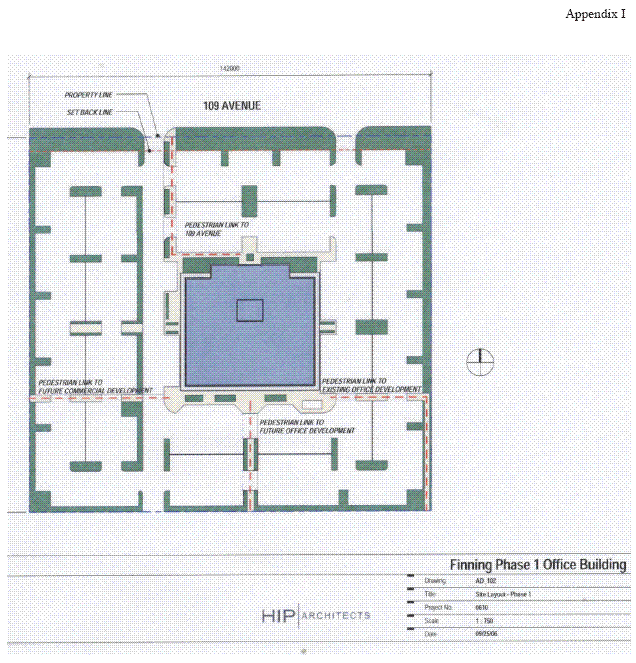

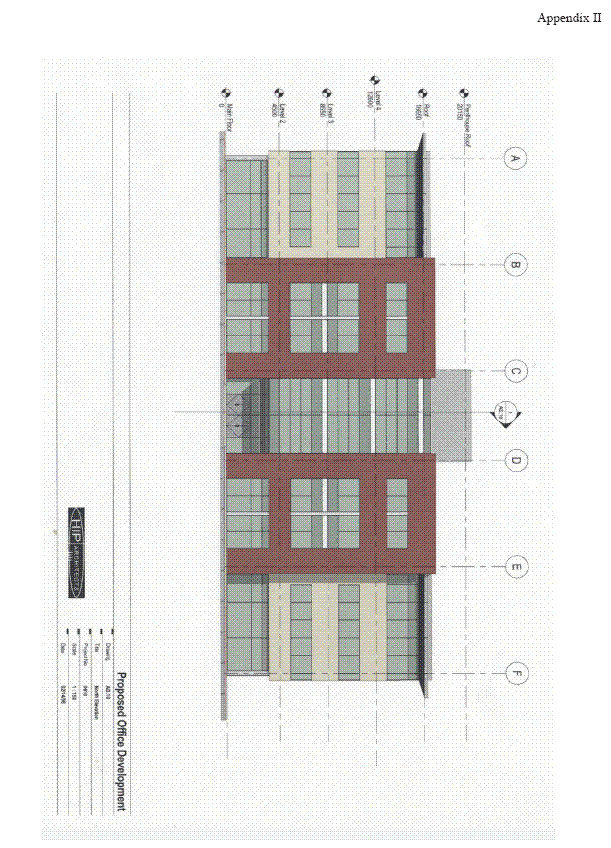

a. Development on this site shall be in accordance with the following regulations and in general accordance with the site plan, elevation and rendering illustrated in Appendices I, II and III of this Bylaw.
b. As per Section 720.3(3) of the Zoning Bylaw, all regulations in the Zoning Bylaw shall apply to this Direct Control Provision unless specifically excluded or modified by the regulations contained herein.
c. The maximum Floor Area Ratio shall be 4.0.
d. A minimum Yard of 4.5 m shall be required abutting 109 Avenue.
e. The maximum Building Height shall not exceed 26.0 m nor six Storeys
f. Pedestrian connections shall be provided as per the site plan illustrated in Appendix I for the purpose of providing a walkable environment that will link this site with future surrounding development. Pedestrian connections are to be enhanced by a variety of hard and soft landscaping materials.
g. Convenience Retail Stores, Business Support Services, Restaurants, Specialty Food Services and Personal Service Shops shall be limited to the first and second storeys of the building.
h. No parking, loading, storage, trash collection, outdoor service or display area shall be permitted within a required Yard. Loading, storage and trash collection areas shall be located to the rear or sides of the principal building and shall be screened from view from any adjacent Sites and public roadways in accordance with the provisions of subsection 55.4 of the Zoning Bylaw.
i. Any business premises or multiple occupancy building having a Floor Area greater than 3000 m2 or a single wall length greater than 25.0 m that is visible from a public road, shall comply with the following criteria:
i. the roof line and building façade shall include design elements that reduce the perceived mass of the building and add architectural interest; and
ii. Landscaping adjacent to exterior walls shall be used to minimize the perceived mass of the building and to create visual interest.
j. All mechanical equipment, including roof mechanical units, shall be concealed by screening in a manner compatible with the architectural character of the building or concealed by incorporating it within the building.
k. Signs shall comply with the regulations found in Schedule 59F of the Zoning Bylaw
